2016 YISHUNBIKE 29er offset asymmetric tubeless-TLR carbon mtb rim for cross country ASD29-21-30S-XC

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Wheel Material:
Carbon
Size:
29er
Spoke Hole:
16-32H
Finishing:
UD/3K
Place of Origin:
Fujian, China (Mainland)
Brand Name:
YISHUNBIKE
Model Number:
ASD29-21-30S-XC
Material:
Toray T700 Carbon Fiber
Use:
MTB Bike
Rim Type:
Clincher Tubeless
Height/Profile:
21mm
Outer width:
30mm
Inner width:
24mm
Holes:
28/32H
Terrain:
Cross Country
Max tire pressure:
65psi/4.5bars
Painting:
OEM branding
SupplyAbility
SupplyAbility:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
OE standard carton packing
Port
XIAMEN

2016 YISHUNBIKE 29er offset asymmetric tubeless-TLR carbon mtb rim for cross country ASD29-21-30S-XC

ModelASD29-21-30S-XCOuter width30mm
UseMTB Cross CountryDepth21mm
Size29erMax weight limit120kg/265lbs
MaterialToray T700 full carbonMax spoke tension300kgf
TypeClincher/TLRMax tyre pressure65psi/4.5bars
Weight365+/-15gFinishUD
TubelessYesDecalCustomized
Spoke Hole16-32hWarranty1 year
ERD596StandardEN Standard
Inner width24mmLead TimeDepends on order details



ASD

Asymmetry Design

RSD

Radius Support Design



CSR

Carbon Stripe Reinforcement

WTP

Wider Tire Profile



ZBH

Zero Bead Hook

TLR

Tubeless Ready



LWT

Light Weight Design

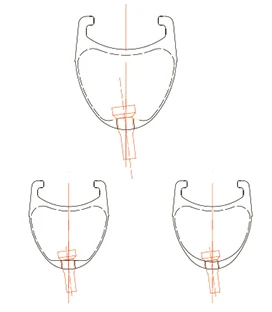

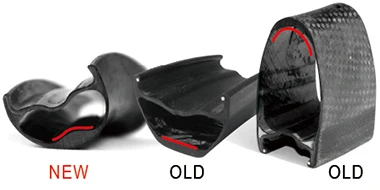

RSD NEW Radius Support Design for Nipple

The goal is to allow the nipple to pivot within the hole in the nipple bed so that it allows the nipple and spoke to align perfectly with one another and not have to bend unnaturally where they meet together.

Allow the nipple to seat well within the hole in the nipple bed so that it doesn’t contact the hole in the old ways that it puts excessive stresses on nipple bed.

It really all comes down to being able to comfortably support the nipple in the nipple bed allow it to pivot slightly within the hole so that spoke to nipple alignment is as linear as possible.

Single point to support the nipple, Which creats weakness on the whole wheel.
