2017 New MTB PLUS Rims 29er 25mm height 42mm width Mountain bicycle rim light weight CCR29-42S-PLUS

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Wheel Material:
Carbon
Size:
29er
Spoke Hole:
16-32H
Finishing:
UD/3K
Place of Origin:
Fujian, China (Mainland)
Brand Name:
YISHUNBIKE
Model Number:
CCR29-42S-PLUS
Tire:
Clincher/TLR
ERD:
594
Weight:
490+/-15g
Outer Width:
42mm
Profile:
25mm
Max tire pressure:
65psi/4.5bars
Max rider weight:
130kg/285lbs
Brake type:
Disc
Finish:
UD/3K matte/glossy
Warranty:
12 Months
SupplyAbility
SupplyAbility:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
En standard carton packing
Port
Xiamen

2017 New MTB PLUS Rims 29er 25mm height 42mm width Mountain bicycle rim light weight CCR29-42S-PLUS

ModelCCR29-42S-PLUSOuter width42mm
UseMTBDepth25mm
Size29erMax weight limit130kg/285lbs
MaterialToray T700 full carbonMax spoke tension300kgf
TypeClincher/TLRMax tyre pressure65psi/4.5bars
Weight490+/-15gFinishUD/3K
TubelessYesDecalCustomized
Spoke Hole16-32HWarranty1 year
ERD594StandardEN Standard
Inner width36mmLead Time/

Technologies for CCR MTB Rims (Cross Carbon Reinforcement)

CSR



Carbon Stripe Reinforcement

WTP



Wider Tire Profile



CCR



Cross Carbon Reinforcement

TLR



Tubeless Ready



ZBH



Zero Bead Hook

LWT



Light Weight Design

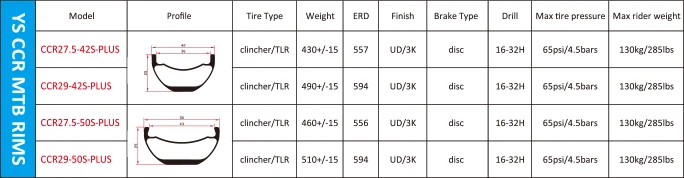

27.5 Plus, 29 Plus CCR Sereis Eyelet Carbon Mountain Bike Rims

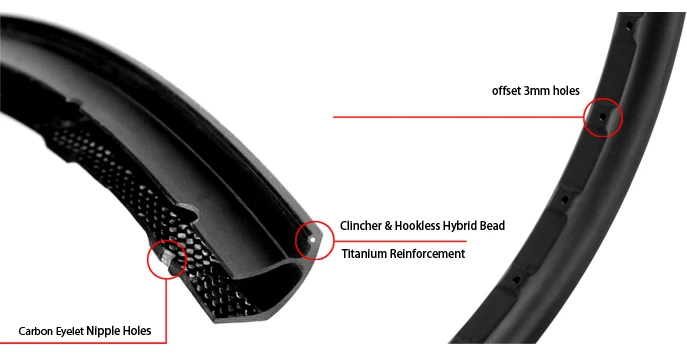

Technology Features

  • offset 3mm Holes: Keep Symemetric Rim Body / Add Extra Strength by offset drills
  • Carbon Eyelet Nipple Holes / Add Extra Carbon Strip Reinforcement / Provide more strength on nipple holes
  • Clincher & Hookless Hybrid Bead / Better Tire Seat & no Air Leaking
  • Titanium Reinforcement / Create Impact Resistant Construction for AM&Downhill / Absorb the shocks from impact

50mm Hybrid Bead 27.5er 29er42mm Hookless Bead 27.5er 29er



Yishun Testing
